Zero Setter 0.0010mm Acc. Magnetic Base

PACK SIZE

The price displayed for this product is the unit price of the product. Where a PACK SIZE is indicated, this refers to the recommended ordering quantity and is also indicative of how many of these products are packaged in a box.

Stock: 1
Model: AC695-050-01
Weight: 1.05kg
Pack Dim: 120.00mm x 95.00mm x 75.00mm
UPC: 6009515862961

ACCUD

Price:

R 6,586.45

Ex VAT: R 5,727.35

Available Options

Stockist

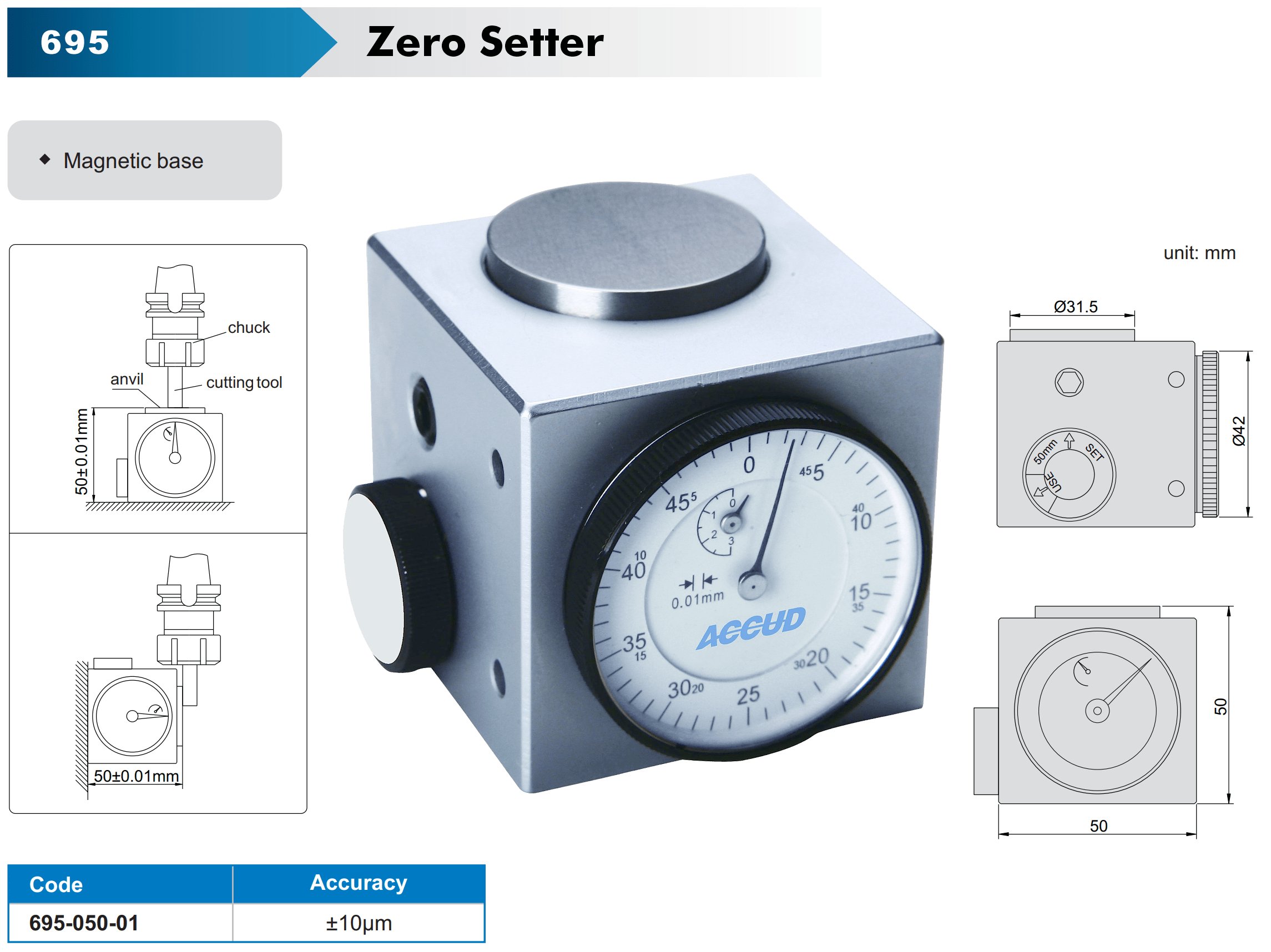

Zero Setter 50mm ±10µm Accuracy
SERIES 695

A Dial Zero Setter 50mm with Magnetic Base is a precision tool used in machining and milling operations to accurately set tool heights and measure workpiece positioning relative to the machine&s spindle or table. This tool, often referred to as a Zero Setter, is essential for ensuring that cutting tools are precisely positioned, which improves accuracy and repeatability in machining tasks.

Benefits:

Accurate Tool Height Setting: The dial zero setter ensures that cutting tools are accurately positioned, which is crucial for precision machining and maintaining consistent part dimensions.
Time-Saving: It reduces the time needed for tool setup and allows for quick adjustments, enhancing productivity.
Versatile: Useful in various applications, such as setting up CNC machines, milling machines, and lathes, for tasks requiring precise measurements.

A Dial Zero Setter with a magnetic base is an invaluable tool for machinists who need reliable and repeatable tool height measurements, especially in precision-focused machining tasks. The magnetic base enhances its stability and ease of use, making it a popular choice in machine shops.

How It Works:

Setup: Place the zero setter on the machine table or near the workpiece, with the magnetic base holding it in position.
Tool Height Setting: Bring the cutting tool or spindle down until it just contacts the zero setter’s contact surface. As the tool touches, the dial indicator will move, showing the tool height on the dial face.
Zeroing: Adjust the dial to set a zero point as a reference. This zero can be used for measuring other positions relative to the set point.
Measurement: Read the dial to measure and adjust tool heights, ensuring the tool is set to the correct depth before starting the machining operation.

Key Features:

Dial Indicator: The zero setter includes a dial indicator with a large, easy-to-read dial face, usually with a measurement range of 50mm (or 2 inches) and ±10µm accuracy. The dial provides highly precise readings, with graduations as fine as 0.01mm, enabling operators to achieve accurate tool height settings.
Magnetic Base: The tool is equipped with a magnetic base, allowing it to be securely attached to the machine table or other ferrous surfaces. This base stabilizes the zero setter during use, ensuring accurate and consistent measurements.
Zero Position Setting: The dial indicator can be set to a zero position, which acts as a reference point for measuring tool height or depth. By zeroing the indicator, machinists can consistently return to the same position, reducing setup time and improving accuracy.
Spring-Loaded Contact Surface: The zero setter has a spring-loaded contact surface that compresses when the tool touches the workpiece or machine spindle. This compression allows for a controlled and repeatable measurement, minimizing the risk of damaging delicate tools or work surfaces.
