Granite Surface Plate Stand 630x400x80mm

Importance of a Proper Stand:

1. Maintaining Flatness:

   • A properly designed stand helps maintain the flatness and dimensional stability of the granite surface plate. Uneven support or poor weight distribution can cause the plate to bend or warp, leading to inaccurate measurements.

2. Weight Distribution:

   • Granite surface plates are heavy, and without a strong, evenly distributed support system, the plate could develop stress points that affect its precision. The stand ensures that the plate&s weight is distributed across multiple points, minimizing the risk of any distortion.

3. Vibration Isolation:

   • Environmental vibrations can come from nearby machinery, foot traffic, or other equipment in the workshop. A well-designed stand with vibration dampening features reduces the transmission of these vibrations to the surface plate, ensuring more reliable measurement results.

4. Ergonomic Height:

   • A surface plate stand allows users to work at a comfortable height. Many stands are designed to elevate the surface plate to a height that is optimal for standing or seated work, improving productivity and reducing strain on the user.

5. Preventing Damage:

   • Without a proper stand, the granite surface plate could come into contact with contaminants, moisture, or uneven surfaces that could compromise its accuracy. The stand keeps the plate elevated and protected.

Maintenance and Care:

• Regular Cleaning: The stand should be wiped clean regularly to prevent the buildup of dirt, dust, or debris, which can affect the performance of the surface plate.
• Leveling Checks: Regularly check the level of the surface plate using a precision level or other measuring tools. The adjustable feet should be tightened or loosened as needed to maintain a perfectly level surface.
• Vibration Isolation: Ensure that any vibration-dampening pads or mounts are in good condition and are effectively isolating the plate from vibrations.

A stand for a granite surface plate is essential for maintaining the accuracy, flatness, and stability of the plate. By providing proper support, leveling, and vibration isolation, the stand ensures that the granite surface plate functions as a reliable reference tool for precision measurement and inspection. Investing in a high-quality stand helps to extend the lifespan of the surface plate and ensures that it performs accurately over time.

Key Features of a Granite Surface Plate Stand:

1. Sturdy Construction:

   • Surface plate stands are typically constructed from durable materials like welded steel to provide maximum stability and strength.
   • These materials are strong enough to support the heavy weight of the granite surface plate while maintaining the integrity of the structure over time.

2. Adjustable Leveling Feet:

   • Stands come with adjustable leveling feet to ensure that the surface plate remains perfectly level on uneven floors.
   • The leveling feet typically feature fine-threaded screws for precise adjustments, allowing the user to easily adjust the height and levelness of the stand to match the working environment.

3. Vibration Dampening:

   • Granite surface plate stands often include vibration-dampening pads or mounts between the stand and the plate to help absorb any vibrations from the floor or surrounding machinery. This feature is critical for precision measurement applications, where even minor vibrations can impact the accuracy of measurements.

4. Open Frame Design:

   • Most surface plate stands feature an open-frame design, which provides easy access to the underside of the plate for cleaning or setup adjustments.
   • This design also helps to distribute the weight of the surface plate evenly, reducing the risk of any stress points or warping of the plate.

5. Heavy Load Capacity:

   • The stand is built to support the significant weight of a granite surface plate. The stand must be rated to handle the specific weight of the surface plate and any additional tools or equipment that may be placed on it.

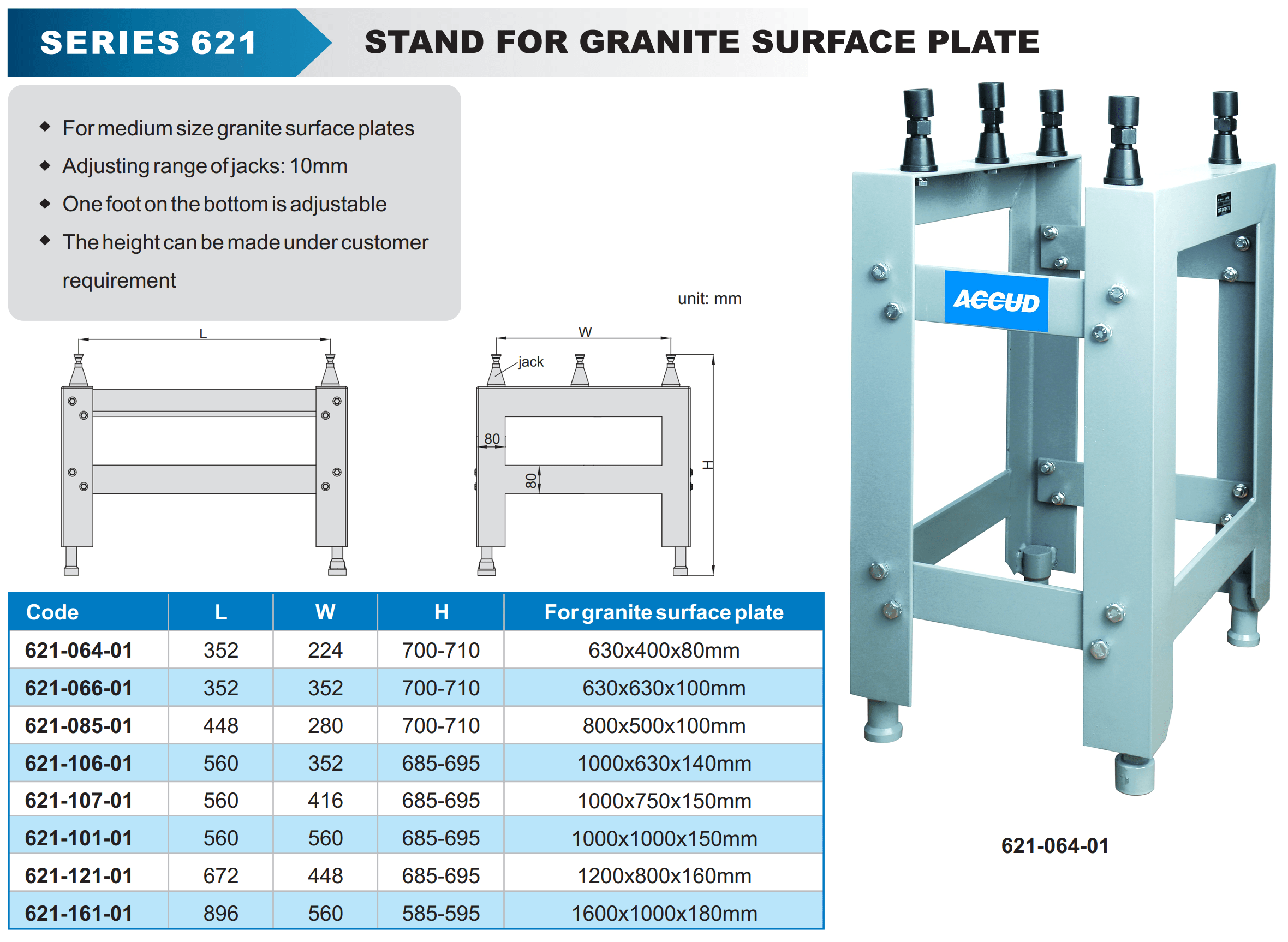

Technical Specifications
