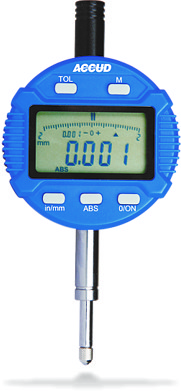

Digital Indicator Flat Back 12.7mm/0.5"

PACK SIZE

The price displayed for this product is the unit price of the product. Where a PACK SIZE is indicated, this refers to the recommended ordering quantity and is also indicative of how many of these products are packaged in a box.

Stock: 1
Model: AC211-010-02
Weight: 0.30kg
Pack Dim: 100.00mm x 164.00mm x 164.00mm
UPC: 6009515845353

ACCUD

Price:

R 6,949.85

Ex VAT: R 6,043.35

Available Options

Stockist

Flat Back Digital Indicator
20µm - 12,7mm range
SERIES 211-02

Manufacturer Cat No: 211-010-02

Accuracy: 20µm - 12,7mm range

Digital indicator with a flat back by ACCUD, with measuring range 0-12.7mm / 0.5 "and resolution 0.001mm | 0.00005".

Equipped with ABS function, i.e. the ability to measure against the set zero value.

The indicator is fitted with a data output port.

Features at a glance

With analog reading
Flat back
Resolution: 0.001mm/0.00005"
Buttons: tolerance set, data preset, inch/mm conversion, measuring direction set, max./min./range measurement, absolute/incremental measurement
Data output

Technical parameters:

Description	Spec
Measurement range:	0-12.7 mm / 0.5 "
Resolution:	0.001 mm / 0.00005 "
Accuracy:	20 μm
Hysteresis:	20μm
Back:	Lug
ABS / INC function:	YES
On / Off button:	YES
Automatic shutdown:	YES
Tolerance set:	YES
Data output socket:	YES
