DIG. HEIGHT GAUGE 1000MM 0.07MM ACC. 0.01MM RES. S/STEEL

PACK SIZE

The price displayed for this product is the unit price of the product. Where a PACK SIZE is indicated, this refers to the recommended ordering quantity and is also indicative of how many of these products are packaged in a box.

Stock: 1
Model: AC181-040-11
Weight: 22.00kg
Dim: 1,330.00mm x 390.00mm x 170.00mm
UPC: 6009515892555

ACCUD

Price:

R 40,182.61

Ex VAT: R 34,941.40

Available Options

Stockist

Digital Height Gauge
1000 mm (1 metre)
SERIES 181-11

Manufacturer Cat No: 181-040-11

Digital Height Gauge with Data Output

Workshop electronic/digital height gauge by ACCUD, measuring range 0-1000mm | 40" and resolution 0.01mm | 0.0005". The height gauge is equipped with ABS absolute measurement function, i.e. the ability to measure against the set zero value. Made of stainless steel (except the base). Measuring tip - made of sintered carbide. Equipped with a data output port.

Made of stainless steel.

Additionally in the set - the tip with the sensor holder, with a hole with a diameter of 8 mm.

Features at a glance

Made of stainless steel (except the base)
USB data output
With clamps (Ø 8 mm holder)
Carbide tipped scriber
Functions: inch/mm, ABS/INC, data hold, tolerance set, data preset

Features at a glance

Made of stainless steel (except the base)
USB data output
With clamps (Ø 8 mm holder)
Carbide tipped scriber
Functions: inch/mm, ABS/INC, data hold, tolerance set, data preset

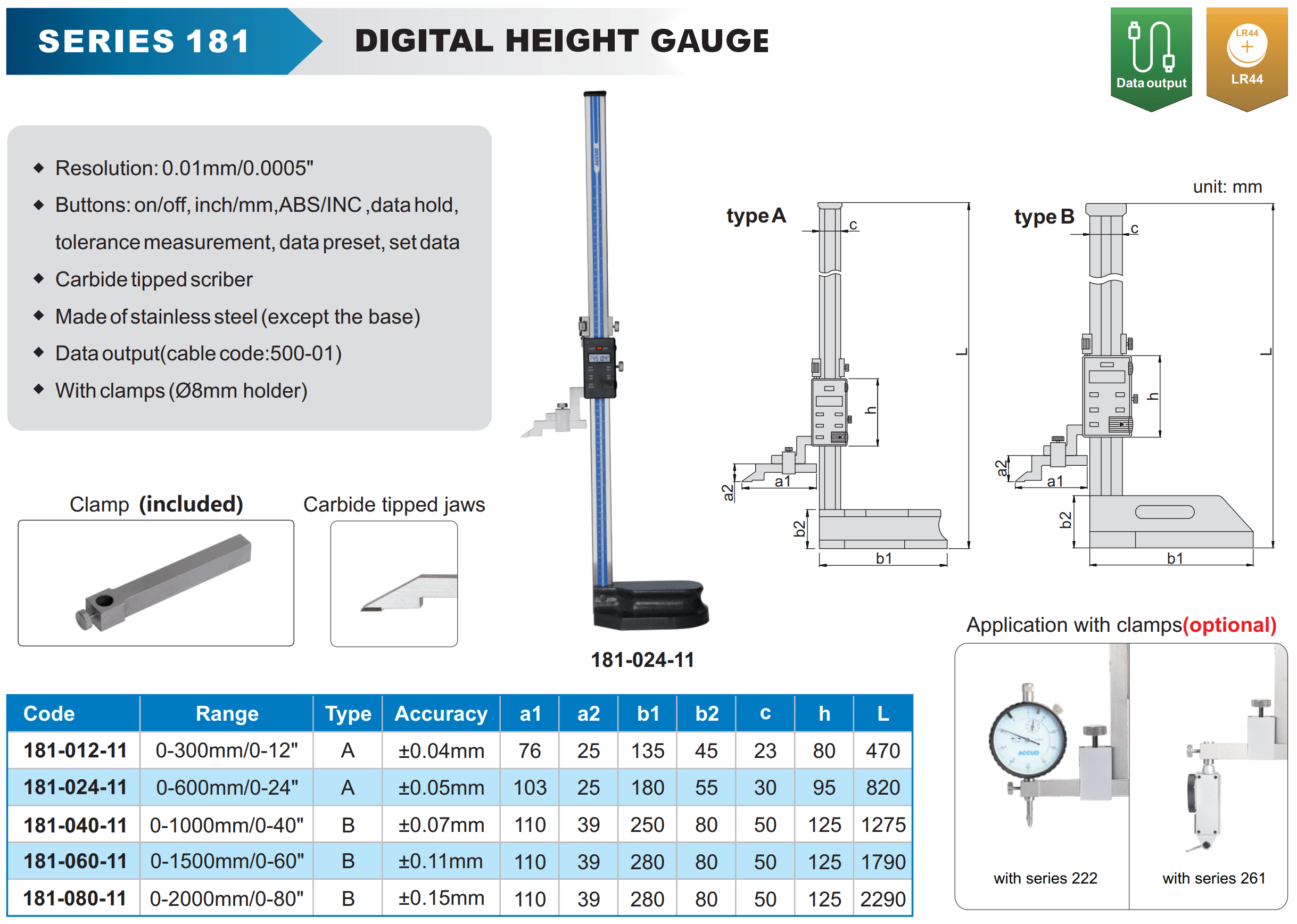

Technical parameters:

Description	Spec
Measurement range:	0-1000mm / 40 in
Resolution:	0.01 mm / 0.0005 "
Accuracy:	± 0.07 mm
Mm / inch switch:	YES
ABS / INC function:	YES
On / Off / Zero button:	YES
Travel lock:	YES
Fine adjuster:	YES
HOLD function (hold result):	YES
Data output socket:	YES
Dimension a1:	110 mm
Dimension a2 :	39 mm
Dimension b1 :	250 mm
Dimension b2 :	80 mm
Dimension c :	50 mm
Dimension h :	125 mm
Dimension L:	1275 mm
Construction:	Stainless steel tracer tip - carbide
Included:	instrument, tracer tip, tip with sensor holder
