DIG. CALIPER 22-150MM 0.04MM ACC. INSIDE NECK 0.01MM RES. S/STEEL
DIG. CALIPER 22-150MM 0.04MM ACC. INSIDE NECK 0.01MM RES. S/STEEL
- Stock: 2
- Model: AC135-006-11
- Weight: 0.52kg
- Dim: 122.00mm x 318.00mm x 318.00mm
- UPC: 6009515851668
Price:
R 3,704.21
Ex VAT: R 3,221.05

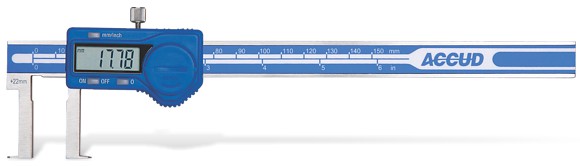

Digital Inside Neck Caliper 150 mm
SERIES 135-11
SERIES 135-11
Manufacturer Cat No: 135-006-11
Range: 22 mm - 150 mm
Jaw length: 30 mm
Graduation: 0.01 mm | 0.0005 in
Accuracy: ±0,04 mm
Digital inside neck vernier caliper
Workshop professional digital inside neck caliper with measuring range 22 - 150mm and measuring resolution 0.01mm. The jaws are 30 mm long. Designed to measure grooves.
Made of stainless steel. This measuring tool is equipped with a screw locking clamp.
Made of stainless steel.
Features at a glance
- Measure groove diameter
- Resolution: 0.01 mm | 0.0005 in
- Buttons: mm/in, on/off, zero
- Battery CR2032
- Automatic power OFF
- Data output (cable code:100-11or 100-12)
- Made of stainless steel

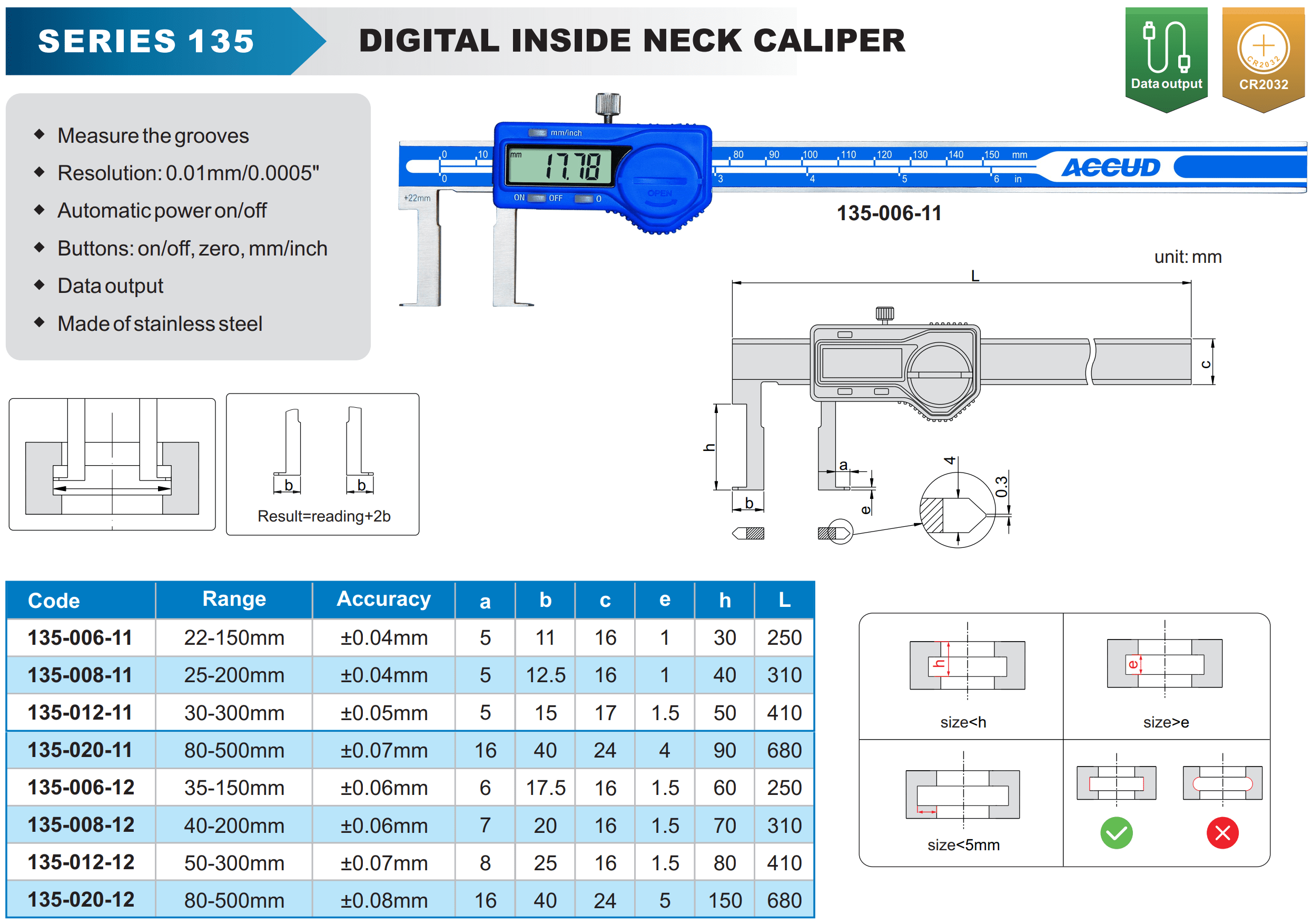

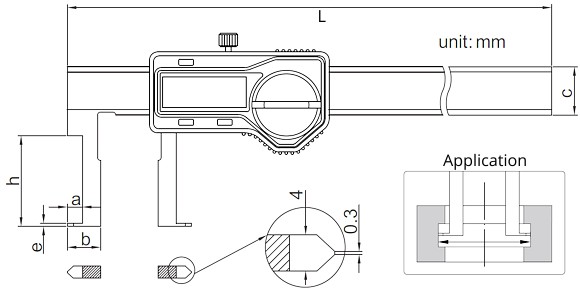

Technical parameters:
| Description | Spec |
| Measurement range: | 22-150 mm |
| Resolution: | 0.01 mm | 0.0005 in |
| Accuracy: | ± 0.04 mm |
| The length of the jaws h: | 30 mm |
| Lock type: | Screw Knob |
| Fine adjuster: | NO |
| Dimension a: | 5 mm |
| Dimension b: | 11 mm |
| Dimension c: | 16 mm |
| Dimension e: | 1 mm |
| Dimension L: | 250 mm |
| Construction: | Hardened stainless steel |
| Included: | caliper |
