Dial Depth Guage 300mm 0.01mm Grad. 101.5x 17mm Base

Name: Dial Depth Guage 300mm 0.01mm Grad. 101.5x 17mm Base
Brand: ACCUD
SKU: AC292-300-12
Price: 4381.62 ZAR
Availability: OutOfStock

Out Of Stock

PACK SIZE

The price displayed for this product is the unit price of the product. Where a PACK SIZE is indicated, this refers to the recommended ordering quantity and is also indicative of how many of these products are packaged in a box.

Stock: Out Of Stock
Model: AC292-300-12
Weight: 0.71kg
Pack Dim: 240.00mm x 130.00mm x 50.00mm
UPC: 6009515893057

ACCUD

Price:

R 4,381.62

Ex VAT: R 3,810.10

Available Options

Stockist

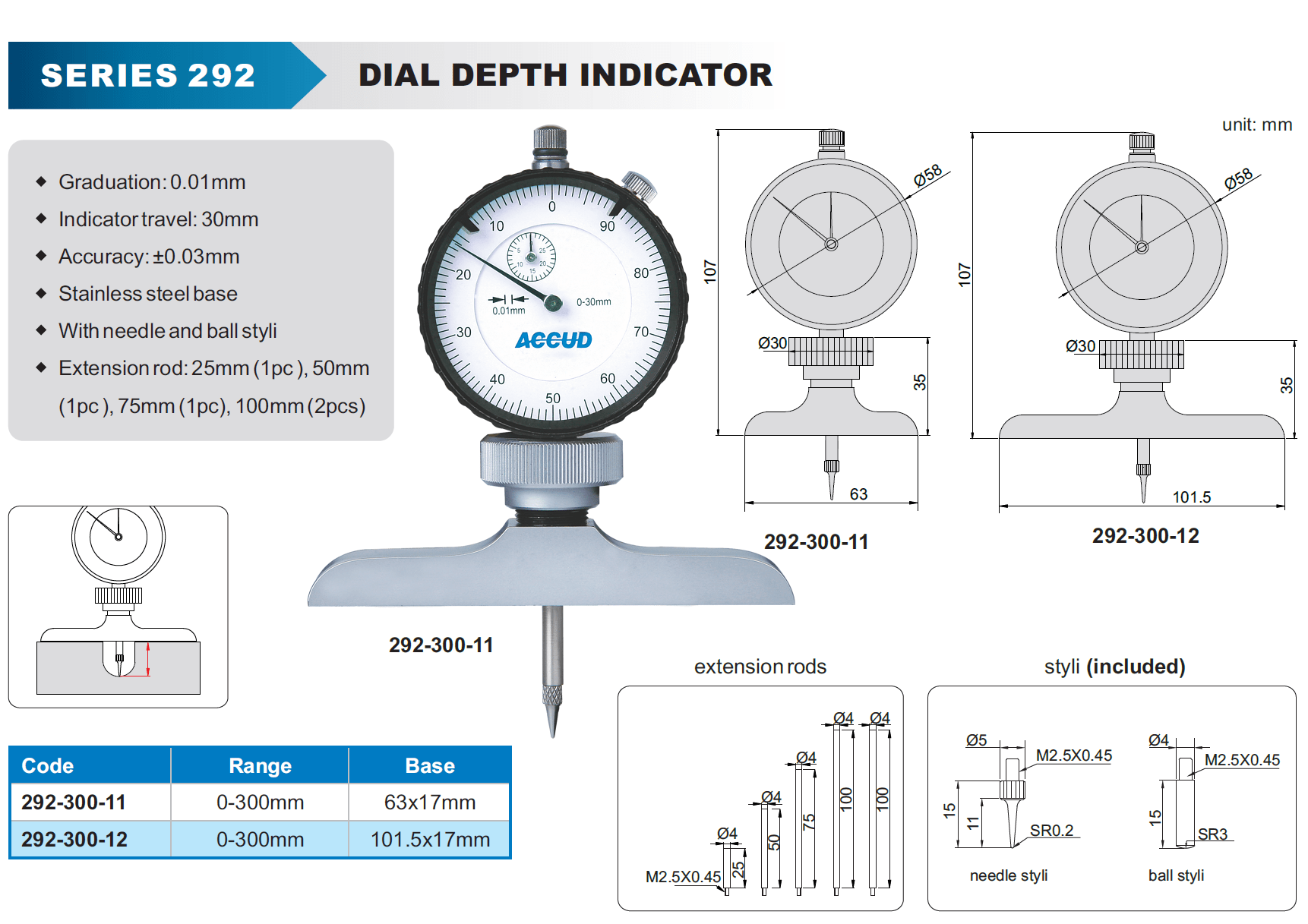

Dial Depth Gauge - 300mm Range | Stainless steel base - 101.5mm x 17mm
SERIES 292

A dial depth gauge is a precision measuring instrument used to determine the depth of holes, slots, recesses, or any other type of surface depression. It is commonly used in machining, engineering, and quality control to ensure that components meet specified depth dimensions accurately.

Manufacturer Cat No: 292-300-12
Graduation: 0.01mm
Indicator travel: 30mm
Accuracy: ±0.03mm
Stainless steel base: 101.5mm x 17mm
Extension rod: 25mm (1pc), 50mm (1pc), 75mm (1pc),100mm (1pc)
Included: With needle and ball styli

Applications

Machining: Used to measure the depth of drilled holes, milled slots, and other machined features to ensure they meet design specifications.
Quality Control: Employed in quality control processes to verify that components meet depth tolerances during inspection.
Engineering: Useful in various engineering tasks where precise depth measurements are critical, such as in tool and die making.
Metalworking: Essential for measuring the depth of recesses and other features in metalworking operations.

In summary, a dial depth gauge is a vital tool for anyone needing to measure depth with high accuracy. Its robust design, combined with the precision of the dial indicator, makes it indispensable in machining, engineering, and quality control applications.

Usage Procedure

Zero the Gauge: Place the base of the gauge on a flat reference surface and zero the dial indicator to establish a starting point.
Measure the Depth: Position the gauge over the feature to be measured and lower the measuring rod until it contacts the bottom surface of the hole or recess.
Read the Measurement: Observe the dial indicator to determine the depth of the feature. The needle on the dial face will indicate the measurement relative to the zeroed reference point.
Record and Compare: Record the measurement and compare it with the specified tolerance to determine if the part meets the required depth.

Advantages of a Dial Depth Gauge

Precision Measurement: Offers highly accurate depth measurements, essential for precision engineering and machining tasks.
Ease of Use: The dial indicator provides a clear and easily readable measurement, reducing the risk of errors.
Versatility: Suitable for a wide range of applications, from simple depth measurements to complex quality control tasks.
Durability: Built to withstand the demands of industrial use, ensuring reliable performance over time.

Technical Specifications

Manufacturer Cat No: 292-300-12
Graduation: 0.01mm
Indicator travel: 30mm
Accuracy: ±0.03mm
Stainless steel base: 101.5mm x 17mm
Extension rod: 25mm (1pc), 50mm (1pc), 75mm (1pc),100mm (1pc)
Included: With needle and ball styli

Tags: Depth Guage
