UNIVERSAL PLUG 10X36MM X20-BAG

PACK SIZE

The price displayed for this product is the unit price of the product. Where a PACK SIZE is indicated, this refers to the recommended ordering quantity and is also indicative of how many of these products are packaged in a box.

Stock: 241
Model: RAW R-S1-UNO-10-20
Weight: 0.04kg
Pack Dim: 84.00mm x 14.00mm x 28.00mm
UPC: 5906675095516

Price:

R 66.30

Ex VAT: R 57.65

Available Options

Stockist

UNO Universal Plug

UNO Universal Wall Plug 10mm x 36mm

Qty: 20 |Bag

Truly universal plug which fixes into any base material, solid or hollow with unique expands at the top giving instant grip.

Special wings prevent pin loss.
Break at the top gives an immediate extension of the grip and tightness.
Special tabs provide stability of the pin in the hole.
Notches of sufficient length to ensure the maintenance of the material.
Central exit of the screw ensures uniform spreading of the pin and maintaining the material.
Unique zigzag shape provides a perfect extension.

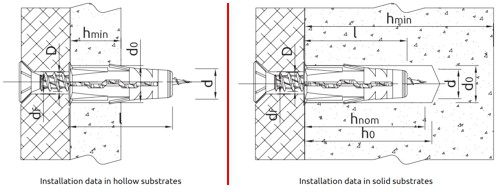

Installation guide



	Drill a hole of required diameter. Insert UNO plug into hole and tap home. Insert screw of required diameter into plug through fixture and tighten.

Features and benefits:

Recommended for unknown substrates and exploited holes.
Short length enables successful use in thin walls.
Unique geometry guarantees maximum expansion and grip.
100% assurance of proper anchoring derived from unique split design of the plug in it&s top part.
Anti-rotation features prevent spinning in the hole.
Lip prevents plug slipping into over-sized holes.

Applications

Suspended ceilings
Shelves
Electrical fittings
Cable trays
Boilers
Radiators
Lighting
Bathroom fittings

Base materials

Approved use in:

Concrete
Solid Brick
Solid Sand-lime Brick
Vertically-perforated clay block
Hollow Sand-lime Brick
Aerated Concrete Block
Plasterboard

Description	Spec
Part No:	R-S1-UNO-10/20
Fixing Diameter	10 mm
Hole Diameter in substrate	10 mm
Hole Depth in substrate	46 mm
Installation Depth	36 mm
Quantity per bag	20
Barcode	5906675095516
