SAFETY QUICK COUPLER 1/4"F PACKAGED TWO STAGE RELEASE AIRBLOCK

PACK SIZE

The price displayed for this product is the unit price of the product. Where a PACK SIZE is indicated, this refers to the recommended ordering quantity and is also indicative of how many of these products are packaged in a box.

Stock: 10
Model: GAV AB-A1P
Weight: 0.14kg
Dim: 183.00mm x 55.00mm x 55.00mm
UPC: 6009515815738

GAV

Price:

R 515.49

Ex VAT: R 448.25

Available Options

Stockist

Airblock Safety Quick Coupler

Type AB-A1P (Packaged)

Airblock is designed to first shut off the air and then open to release the coupler connection.
A true safety feature

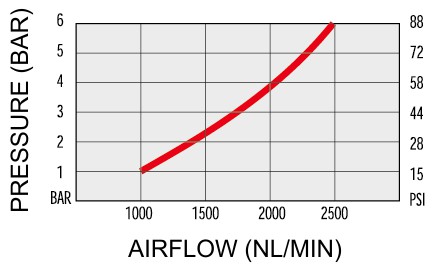

Excellent airflow characteristics
Universal type coupling
Patented design

Made in Italy

¹/₄ inch female BSP thread


The air flow freely through the coupler	Push release backwards. The flow of air is cut and the pressure is vented.	The coupler is released from the connection

The British Standard Pipe (BSP) is a family of standard screw thread types that has been adopted internationally for interconnecting and sealing pipe ends by mating an external (male) with an internal (female) thread and has been adopted as a standard scale used in plumbing fittings.

More information on BSP Thread sizing

BSP = British Standard Pipe measured in inches

Nom size	Dash size	TPI Threads Per Inch	Thread pitch		Major diameter		Minor diameter		Gauge length
(in)	(in)	(in⁻¹)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)
¹⁄₈	−2	28	0.907	0.0357	9.728	0.383	8.565	0.3372	4±0.9
¹⁄₄	−4	19	1.337	0.0526	13.157	0.518	11.445	0.4506	6±1.3
³⁄₈	−6	19	1.337	0.0526	16.662	0.656	14.950	0.5886	6.4±1.3
¹⁄₂	−8	14	1.814	0.0714	20.955	0.825	18.633	0.7336	8.2±1.8
³⁄₄	−12	14	1.814	0.0714	26.441	1.041	24.120	0.9496	9.5±1.8
1	−16	11	2.309	0.0909	33.249	1.309	30.292	1.1926	10.4±2.3

Airblock Safety Quick Coupler

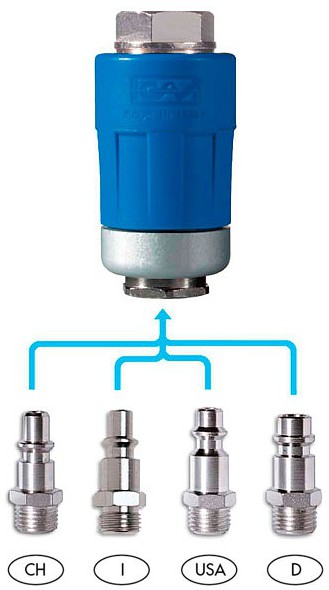

Truly universal - It accepts all types of standards


The air flow freely through the coupler	Push release backwards. The flow of air is cut and the pressure is vented.	The coupler is released from the connection
