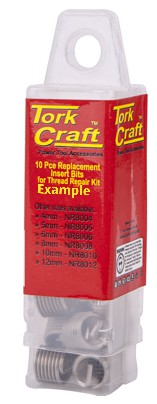

Thread Repair Kit M10 X 1d Replacement Inserts 5pce
- Stock: 20
- Model: NR8010-01
- Weight: 0.02kg
- Pack Dim: 58.00mm x 56.00mm x 56.00mm
- UPC: 6009515842536
M10 x 1,5mm x 1.0D
Works with Kit NR8012 or NR5012 Thread length: 10 mm Qty: 5 Pieces
Restore stripped threads easily and permanently with Tork Craft thread repair
kits. Tork Craft application-specific thread repair kits make complex repairs simple
and are a recommended solution by automakers.

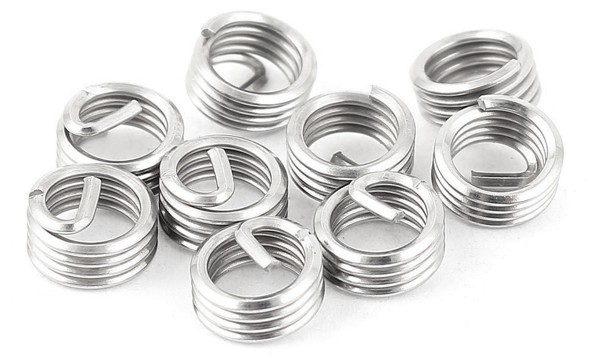

Tork Craft inserts are for permanently repairing tapped holes which have been stripped or damaged due to wear, corrosion, and over-torqing.
Available in M4, M5, M6, M8, M10 and M12 and in three thread lengths per thread size.
A quality product by Tork Craft
Let&s make sense of the numbers:
Example:
M4 x 0.7 x 1.0D
M4: The Metric value of the required thread i.e. Metric
4mm
0.7: This is the pitch of the thread
1.0D: this is the installed length of the insert after installation.
Determining the installed length:
M4 x 1.0D = 4mm deep
M4 x 1.5D = 6mm deep
M4 x 2.0D = 8mm deep
Thus, the depth (length) of the installed insert will be the metric diameter of the thread (in this case M4) multiplied by the “D” value.
Features:
- Repairs stripped or damaged internal threads
- Different kits available to repair threads from M4 to M12
- No engineering experience needed
- Protects tapped threads against wear and tear
Applications:
Thread repair kits are versatile kits designed to repair stripped or damaged internal threads in various sizes that have been damaged by over torque, wear and corrosion. They include a collection of tools including a drill, tap, inserts, mandrels and more, ensuring you have all the required tools ready.
How to use:
