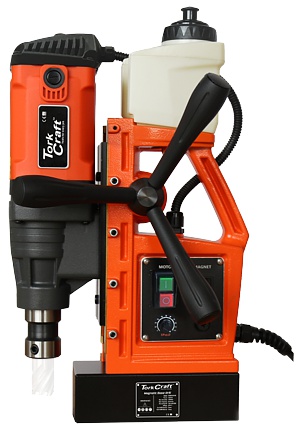

Mag Base Core Drill 35mm 830rpm 14800n 130mm Stroke 220v

Name: Mag Base Core Drill 35mm 830rpm 14800n 130mm Stroke 220v
Brand: TORK CRAFT
SKU: TCMD0035HD
Price: 17877.90 ZAR
Availability: OutOfStock

In Stock Soon

PACK SIZE

The price displayed for this product is the unit price of the product. Where a PACK SIZE is indicated, this refers to the recommended ordering quantity and is also indicative of how many of these products are packaged in a box.

Stock: In Stock Soon
Model: TCMD0035HD
Weight: 14.54kg
Pack Dim: 510.00mm x 168.00mm x 435.00mm
UPC: 6009515869892

TORK CRAFT

Price:

R 17,877.90

Ex VAT: R 15,546.00

Available Options

New Expected Date :

05/09/2025

Stockist

35mm MAGNETIC BASE DRILL 14800N

The magnetic base drill is fitted on a strong dual-coil magnet (electromagnet) with a maximum core drill capacity of 35mm. The speed is adjustable electronically between 100-830 rpm.

Application:

Building construction
Bridge construction
Ship/Marine Construction
Annular cutters or twist drill bits
Horizontal or overhead drilling

Great for horizontal, side face and top face drilling

Getting the best out of a Magnetic base drill:

Always wear proper safety PPE (Personal Protective Equipment).
Ensure the machine is switched off and unplugged from the power supply when changing or adjusting the cutting bits.
During machine operation the cutters and drill bits must be lubricated and cooled with a suitable cutting fluid.
Ensure the surface where the machine will be placed on is level, rust free and clean of any varnish or paint.
Do not try and use the magnetic drill on a non-magnetic surface.
Do not use the magnetic drill on a structure where welding is in progress as it could cause damage to the machine.
Always use core drill bits with a pilot pin

Features:

Strong dual coil magnet (electromagnet).
With overload protection.
High power and light weight.
Constant power soft starting.
Integrated slide and gearbox provides high accuracy and minimal vibration.
Horizontal level, side face and top face drilling

Description	Specifications
Rated voltage & frequency	220V-240V @ 50-60 Hz
Cable length	2.5m
Core drill capacity	Ø 35mm
Twist drill capacity	Ø 10mm
Rated imput power	1550W
No-Load speed	100-830 rpm variable
Maximum magnetic attraction	14800N
Cutting depth	30mm
Stroke	130mm
Magnet Dimensions	166(L) x 80(W) x 50(H) mm
