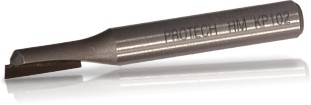

Straight Bit Single Flute 3/16" X 1/2" Cut 1/4" Shank
- Stock: 101
- Model: KP102
- Weight: 0.08kg
- Pack Dim: 22.00mm x 88.00mm x 88.00mm
- UPC: 6009600400108
Single
flute Straight bit
In
choosing a straight bit for any application, always select one with the shortest
cutting edges and the shortest overall length that will reach the required cut depth.
Excessive length intensifies deflection and vibration, which degrade cut quality
and lead to tool breakage.
A
single-flute bit should be used where cut speed is more important than cut finish.
Making one cut per revolution is faster than making two or three. Improved chip
clearance is possible with a single flute configuration. The result: fast cuts.
This router bit has a 6.35mm shank (shaft) that will fit most small routers. Please ensure that you select a router bit with a shank (shaft) size that will fit into your router collet.
PRO-TECH router bits are manufactured in Taiwan. This well-supported and afforable router bit range is a known BRAND in South Africa for over 30 years.
| consider safety for your health and the people around you | |||
General safety suggestions:It is advisable to always have the following items nearby and in a good condition
|
|||
 |
 |
 |
 |
|
Wear Gloves
|
Eye Protection
|
Hearing Protection
|
Dust Mask
|
To use router bits safely (and to get the best results from your router), the router bits need to be installed properly into the router&s collet. Improper installation of your bits can cause excessive chatter and could increase the likelihood that the bits will break when in use.
Clean and sharp
First of all, before beginning any routing operation, check your bits to make sure that they are clean, relatively free of pitch, and most of all, sharp. If the bit is dull, chipped, is excessively burned or has any other defect, it should be sharpened or replaced before use.
Correct
collet and collet nut fit
Most router collets have a recess (groove) that needs to click into a circlip that resides inside the collet nut. Failing to ensure that the collet "clicked" into the collet nut will cause you to struggle to remove the router bit after tightening. This could cause the collet to break or be removed by a technical repair centre.
Correct
fit inside the collet
When installing the bit into the collet, do not tighten the collet with the bit "seated." Instead, insert the bit until the shank (bit shaft) reaches the bottom of the collet, then ease it out about 2 mm before tightening the collet.
When the bit is tightened, there should be no less than 2/3 &s of the length of the shank in the collet. If your bit has a shank that is too short, then the bit should be replaced.
Safety gear
There are a few other safety measures to keep in mind whenever you use your router. First of all, remember to always wear appropriate safety gear as indicated above.
Correct speed setting
Second, be sure to set your router to the proper speed for your router bit. Setting your router to an incorrect speed will not only affect the router&s performance, but also can cause the bit to break much more easily and even cause bodily harm. The speed at which a router bit turns can be important. The typical router runs at about 22,000 rpm, which is fine for most bits. But as the diameter of the bit increases, you’ll want to slow things down.
Also, before beginning any routing operation, be certain that you give the router&s motor time to come up to full speed for the chosen setting. Beginning to cut before the bit is at full speed can give less than desired results.
| Part number | Shank dia. | Cutting width | Cutting Height | Radius (r) |
| KP102 | 1/4 in (6.35mm) | 4.8 mm (3/16 in) | 12.7 mm (1/2 in) | Straight |
