Router Bit Corner Round 1/4"
This
an affordable router bit range that is well supported throughout South Africa. All
our Tork Craft router bits are Tungsten tipped. Tork Craft is a well-known BRAND
in most retail stores.
At a glance:

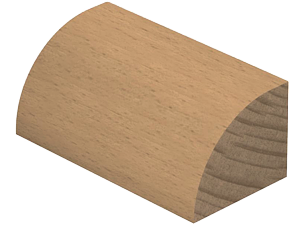

¼" Ø Shank router bit with a 6,35 mm (1/4") radius to profile a roundover shape in wood.
Application:
This router bit is used with a plunge router to profile the edge of wood to produce a rounded edge that has a 6,35 mm radius. The 6.35 mm shank should fit most small routers.
Definition: The basic edge-forming bit, the corner-rounding bit rounds an edge to a given radius. The tool is shouldered to cut a fillet. The cut can be used to ease edges, as a simple profile, or as a part of a complex one. Also known as roundover, rounding over, and quarter-round. If a smaller pilot bearing is used, a second shoulder can be produced, in effect making the bit a beading bit.
Please ensure that you select a router bit with a shank (shaft) size that will fit your router. If are in doubt, contact us and we will confirm if it will work for you.
Please ensure that you select a router bit with a shank (shaft) size that will fit your router. If are in doubt, contact us and we will confirm if it will work for you.
| consider safety for your health and the people around you | |||
General safety suggestions:It is advisable to always follow Safety Guides and keep all equipment in a good condition. Never use blunt cutters and blades. These will simply overheat and disintegrate causing harm to people nearby.
|
|||
 |
 |
 |
 |
|
Switch OFF
|
Eye Protection
|
Hearing Protection
|
Dust Mask
|
| Shank dia. (d) | Radius (R) |
| 6,35 mm (1/4") | 6,35 mm (1/4") |
Explaining
the Specifications:
- (d) -> The diameter of the shank or shaft. This size should be the same as the collet size of your router. Example: a small router is mostly supplied with a quarter inch collet that is 6,35 mm inside diameter.
- Common collet sizes:
- 1/4" collet = 6,35mm inside diameter
- 8mm collet = 8mm inside diameter
- 12mm collet = 12mm inside diameter
- 1/2" collet = 12,7mm inside diameter
- NOTE that the 12mm and
the 12,7mm (1/2") sizing are often misunderstood. 1/4 inch is not 6mm but
e
xactly
6,35mm. A 6mm shank will not fit in a 1/4 in collet. Wrong sizes will either
break the collet or the bit will fall out.
- TCT = Tungsten Carbide Tipped
- Allways stay in the MAX Speed range of router bit
