Filter Regulator Lubricator In Line 1"

PACK SIZE

The price displayed for this product is the unit price of the product. Where a PACK SIZE is indicated, this refers to the recommended ordering quantity and is also indicative of how many of these products are packaged in a box.

Stock: 23
Model: GAV FRL300
Weight: 2.42kg
Pack Dim: 190.00mm x 85.00mm x 85.00mm
UPC: 8011275011471

Price:

R 7,671.02

Ex VAT: R 6,670.45

Available Options

Stockist

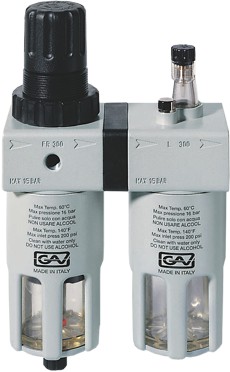

GAV FRL300 — Modular Filter / Regulator / Lubricator Unit

Packaging: Boxed (sold as each)

The GAV FRL300 is a high-performance modular filter, regulator and lubricator (FRL) unit designed to provide clean, regulated and properly lubricated compressed air for industrial, automotive and workshop applications. With a wide regulating range of 0–12 bar, a maximum inlet pressure of 16 bar and a high flow capacity of 8000 Nl/min, this FRL unit ensures optimal performance of pneumatic tools and equipment. The 10 micron filtration system effectively removes moisture and contaminants, while the built-in manometer and locking control knob offer precise and secure pressure adjustment.

Extra Information

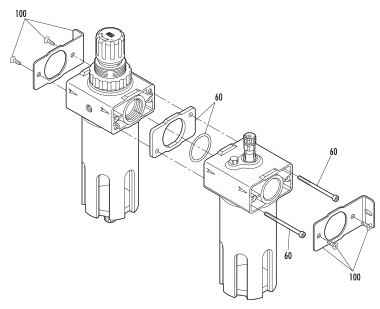

The modular design allows sections to be separated for cleaning or maintenance.
Regularly check the lubricator reservoir to maintain proper oil delivery.
Mount the FRL unit as close as possible to air-consuming tools for best results.

Pro Tip

Set the lubricator to deliver only a light mist — too much lubrication can contaminate surfaces, especially when spraying paints or coatings.

Features

Modular FRL system — filter, regulator and lubricator combined in one unit.
Regulator range: 0–12 bar — versatile for multiple pneumatic applications.
Maximum inlet pressure: 16 bar — suitable for high-pressure compressed air lines.
10 micron filtration — removes dust, moisture and impurities.
High flow rate: 8000 Nl/min at 6 bar — supports demanding air tools.
Manometer included — allows easy and accurate pressure monitoring.
Pressure regulator with locking control knob to prevent accidental changes.
Durable modular construction for workshop and industrial use.

Benefits

Protects pneumatic tools: Clean, lubricated air extends tool lifespan.
Improves performance: Consistent pressure ensures smooth, reliable operation.
High airflow capacity: Suitable for multiple or high-demand tools.
Enhanced control: Lockable regulator prevents pressure drift during use.

Specifications

Description	Spec
Brand	GAV
Cat No.	FRL300
Product Type	Modular Filter / Regulator / Lubricator
Regulator Range	0 – 12 bar
Maximum Inlet Pressure	16 bar
Filtration Rating	10 micron
Maximum Flow Rate	8000 Nl/min @ 6 bar
Manometer	Included
Regulator Feature	Lockable control knob
Thread	1 inch BSP Female
