Angle Grinder 230mm 2400w 6600rpm 220v
Angle Grinder 230mm 2400w 6600rpm 220v
- Pack Size: 2
- Stock: 530
- Model: TCAG0230
- Weight: 6.34kg
- Pack Dim: 570.00mm x 120.00mm x 120.00mm
- UPC: 6009515877330
Price:
R 2,287.06
Ex VAT: R 1,988.75

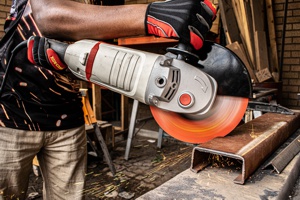

230mm Angle Grinder 2400W
The 230mm angle grinder has a powerful 2400W motor and the handle can be rotated 90° for added ergonomics. Easily change accessories with the supplied wrench.
We have a multitude of different accessories that can be used with the angle grinder! From cutting/grinding steel to masonry.
Application:
- Cutting: For cutting into masonry, wood and steel using various cutting discs and diamond blades.
- Grinding: For grinding various steel and masonry using various grinding discs and wheels.
- Polishing: polishing various steel and masonry using various wire brushes, flap discs and face off discs.
FREE carbon brush set inside of the box.
Angle grinder safety:
- Always wear proper safety PPE (Personal Protective Equipment).
- Use the proper wheel size. For a 115mm angle grinder, use 115mm accessories.
- Match the RPMs with your angle grinder and the accessory. For example, if the wire brush is rated for Max 6600 rpm, don&t fit it on a 11000 rpm angle grinder
- Use the safety guard as designed. Consider the rotation direction on the angle grinder&s gearbox. The guard is a barrier between your hands and the fitted accessory.
- Don&t try to alter or modify the angle grinder in any way and only fit accessories that are designed to be used with an angle grinder.
- Always inspect the condition of the fitted accessory. If the disc is damaged, it is no longer safe to use it.
- The angle grinder relies on the fan fitted to the motor to cool it down during use. It is always recommended to have it run for at least a minute before using it
- Consider the work area where the angle grinder is used in. When cutting/grinding steel, sparks will fly and cause a fire if close to flammable materials and liquids.
- It is important to always have two hands on the angle grinder in the correct positions to have control of the machine. Try not to cover the vents.
| Description | Specification |
| Packaging Type | Cardboard Box |
| Material | Body and Auxiliary Handle: Plastic Gearbox: Aluminium Wheel Guard: Mild Steel |
| Package Dimensions | 570(L) x 120(T) x 120mm(W) |
| Package Weight | 6kg |
| Finish | Grey Plastic with red and black accents |
| Max RPM | 6600 |
| Wattage | 2400W |
| Voltage | 220~240V (50Hz) |
| Spindle Thread | M14 |
| Arbor size | 22.11mm |
| Safety Class | Class II |
| Disc Diameter | Max 230mm |
| Plug Type | Euro - VDE2 pin round |
| Cable Length | 2m |
| Trigger handle rotatable (Clockwise and Anticlockwise) | |
| Contents | 1 x Auxiliary handle 1 x Spare set of carbon brushes 1 x Pin wrench 1 x Hex wrench 1 x Protective blade guard |
Download the Leaflet:
View the Leaflet:
Download the Instruction Manual:
View the Instruction Manual:
Download the Spec Sheet:
View the Spec Sheet:
Download the Exploded view:
View the Exploded view:
Download the FAB sheet:
View the FAB sheet:
